Always ready to meet your measurement needs
The GLORY coordinate measuring machine (CMM) is a new generation of universal measuring machine. The system provides a highly configurable measurement platform that builds upon Hexagon’s innovative and advanced core technologies and nearly 30 years of experience in industrial metrology.
GLORY comes in two models – Touch and Scan – optimally configured to handle a wide variety of measurement tasks in their respective application classes. Users can choose the best solution for each application by leveraging various tactile and non-contact sensors in combination with a range of indexing probe heads. The CMM supports the fast changeover of measurement methods to meet different part and feature requirements.
GLORY CMMs run the market-leading and widely used metrology software PC-DMIS that offers optimised workflows for all types of measurement operations, making it easy and efficient to implement simple or complex measuring routines.
Sensors

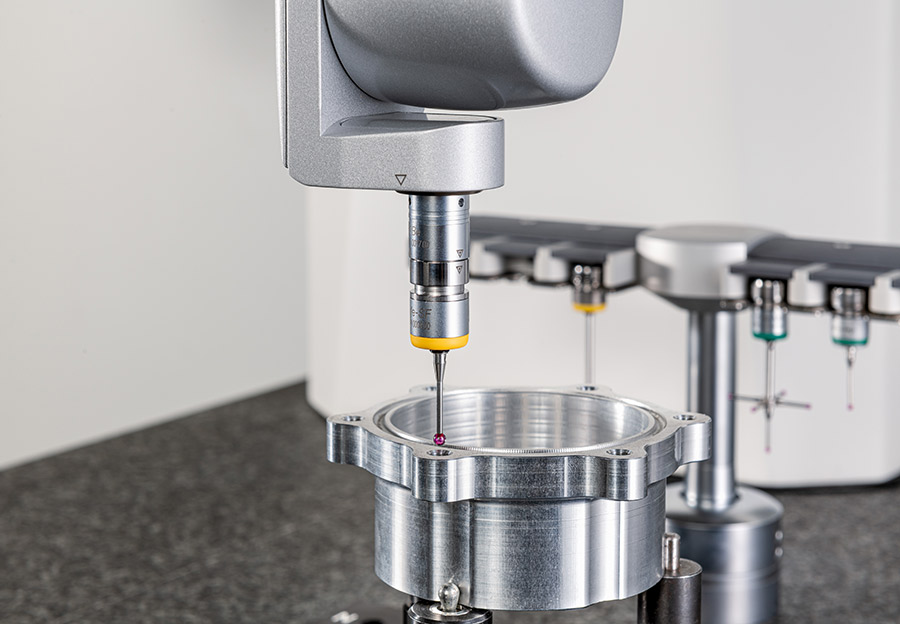

Touch-trigger probe on an indexing probe head
A touch-trigger probe on an indexing probe head allows for repeatable and fast 3D point measurements in any spatial direction, making it ideal for general-purpose measurements on complex parts. GLORY supports manually and motorised indexable probe heads and modular 5-way and 6-way touch-trigger probes with exchangeable stylus modules providing different trigger forces.

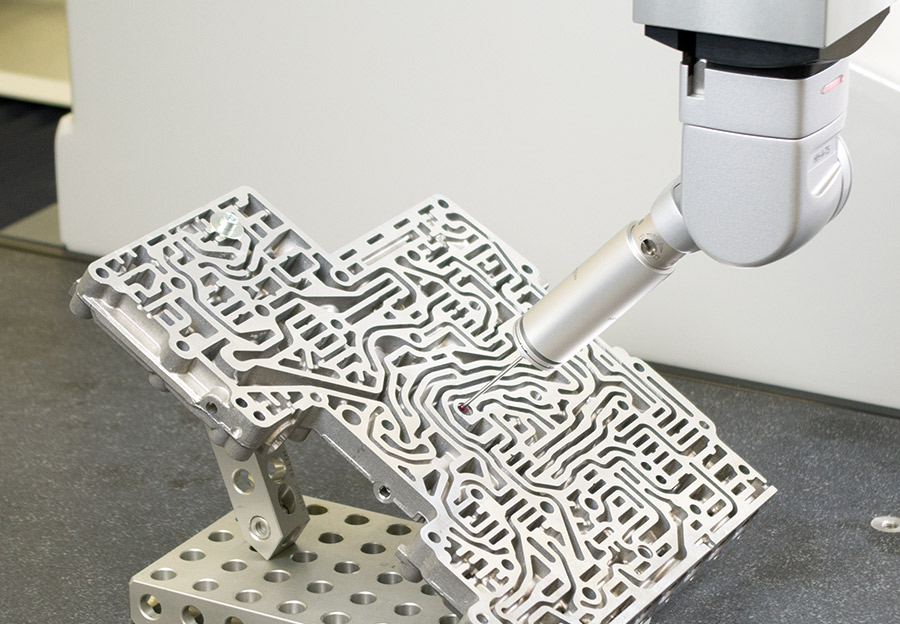

Tactile scanning probe on an automatic indexing probe head
A scanning probe on a motorised indexing probe head enables fast measurement of form features and surface profiles from variable spatial directions and angles around the part. With tactile scanning, hundreds of data points on both known and unknown surfaces are captured per second, providing accuracy and reliability while saving the user significant process time. GLORY supports motorised indexable probe heads fitted with Hexagon’s unique TKJ (kinematic joint) probe interface. A fixed scanning probe head is also available.

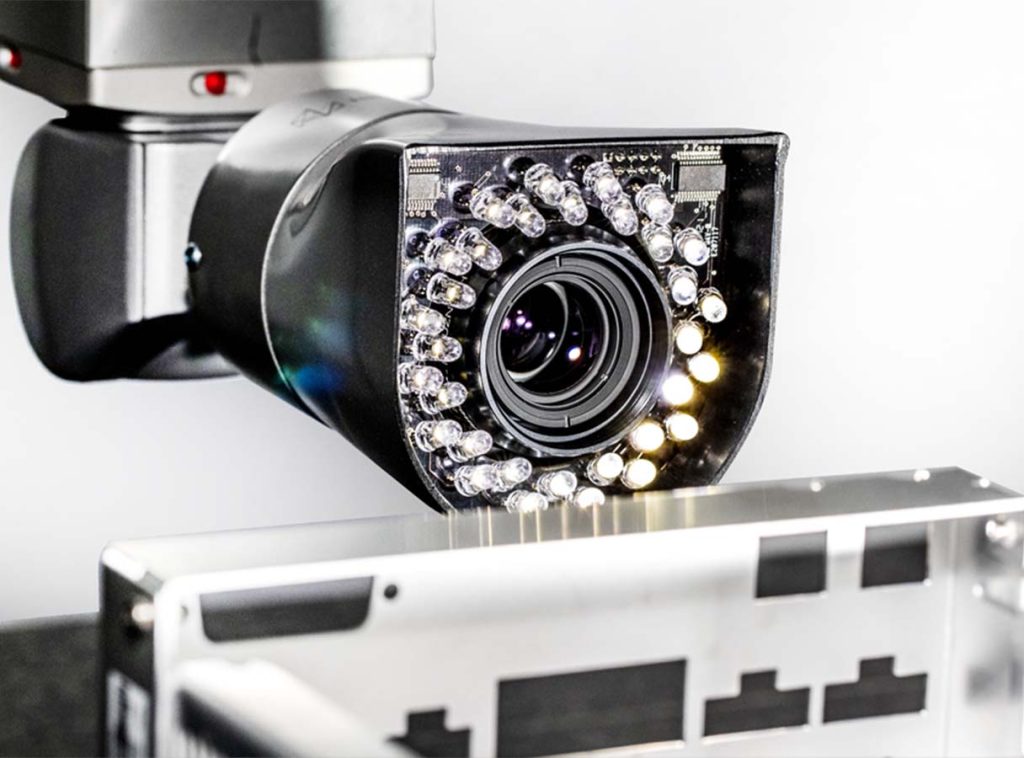

Non-contact vision sensor on an automatic indexing probe head
The vision sensor has a high-resolution colour camera and built-in LED illumination system to measure microscopic features and easily deformed components. With the vision sensor’s zoom capabilities, operators can choose between a large field of view to quickly measure multiple features simultaneously or a smaller measurement area to measure individual elements with higher accuracy.
Non-contact laser scanning sensor on an automatic indexing probe head
The laser scanning sensor collects hundreds of thousands of data points per second and accurately digitises entire part surfaces in point clouds for more efficient measurement and faster throughput.
Advanced design for intelligent solutions
Carbide aluminium mechanical frame
The frame is surface hardened for extra rigidity. The lightness of aluminium, its good thermal conductivity and its adaptability to temperature changes provide the optimum material for a universal measuring system.
One-piece granite stage
The solid and stable granite table reduces vibration and supports smooth bridge movement.
Pneumatic balancing technology
The flexible suspension system avoids interference between axial movement and the drive train and ensures high positioning accuracy, smooth running and saves energy.
HEIDENHAIN scales
High-resolution encoder system, excellent measurement stability, repeatability and accuracy. Unaffected by interference, wear-resistant, stable and reliable.
Reinforced timing belts
Reinforced timing belts with built-in steel wire combine flexible engagement and rigid axial drive characteristics to ensure precise positioning and eliminate jitter during high-speed scanning.
Integral dovetail guides
Precision-machined integral dovetail guideways and pre-loaded air bearings in all axes ensure stable movement, accuracy, repeatability and long-term stability.
Messaging light
The multi-coloured LED signal light integrated into the top of the Z-axis allows users to monitor the CMM’s status in real-time, even from a distance, optimising time and resource management.
TRICISION bridge
An optimal structural rigidity provides higher accuracy, long-term stability and improved dynamic performance. The triangular crossbeam is structurally robust and less prone to deformation under stress, allowing for faster operation, a smaller footprint and better thermal stability.
- Value adding featuresActive vibration damping
An active vibration damping system allows the CMM to operate with more resistance to ground vibrations, for example, close to the production line or in automated measuring cells.
Styli, probe module and sensor changer racks
Versatile and modular rack systems are available for GLORY and enable automatic application changes during measurement routines and uninterrupted measurements.
Fly2 mode: Glide smoothly through measurements
The new generation of flight control technology, Fly2, optimises the measurement path to significantly reduce hold-up and idle time during the measurement process, increasing measurement efficiency by more than 10% and boosting productivity.
Scan Pilot: Guiding your CMM through the unknown
Scan Pilot is a new generation of scanning navigation technology that significantly improves accuracy when scanning unknown paths. It performs excellently when scanning unknown profiles, complex geometries or abrupt surface changes at high speeds.
ECO Mode and ECO Mode+: Saving air saves energy
ECO Mode enables automatic power-off when the CMM is idle. And when it needs to stop working for a set period, ECO Mode+ automatically powers down and stops the supply of compressed air to the air bearings, significantly increasing energy efficiency. Once in ECO Mode and ECO Mode+, the CMM will automatically resume operation and perform subsequent procedures without human intervention.
Automation integration
GLORY can be easily integrated into automation systems – from manual to semi-automatic to fully automatic, offline to near-line, and near-line to inline. Plug-and-play and modular, it meets the requirements of all levels of automation.
Real-time CMM status, usage and performance monitoring
Real-time information on how key assets are performing can be analysed via a centralised, user-friendly dashboard, integrating the machine’s status and usage, measurement and environmental data. This information can be accessed from a PC, smartphone or tablet. Customised notifications and instant alarms ensure that operators can remotely monitor unattended assets, optimise their overall efficiency through data analysis and add value to the CMM by preventing downtimes, enhancing resource allocation and optimising CMM use.
Q-DAS software
Statistical process control software Q-DAS enables greater evaluation and optimisation of measuring machines and quality assurance processes. The Q-DAS portfolio offers a range of tools to simplify the assessment and management of the vast data produced by CMMs. By delivering real-time, clear insights and sophisticated analysis capabilities, Q-DAS helps users easily identify and address sources of process variation and drive continuous improvement of industrial production processes and systems.
- Measuring volume
Type X (Width) Y (Depth) Z (Height) 04.05.04 400 mm 500 mm 400 mm 05.06.05 500 mm 600 mm 500 mm 06.08.06 600 mm 800 mm 600 mm 06.10.06 600 mm 1000 mm 600 mm 08.10.06 800 mm 1000 mm 600 mm 08.15.06 800 mm 1500 mm 600 mm 10.12.08 1000 mm 1200 mm 800 mm 10.15.08 1000 mm 1500 mm 800 mm 10.21.08 1000 mm 2100 mm 800 mm 12.15.10 1200 mm 1500 mm 1000 mm 12.22.10 1200 mm 2200 mm 1000 mm 12.30.10 1200 mm 3000 mm 1000 mm 15.22.10 1500 mm 2200 mm 1000 mm 15.30.10 1500 mm 3000 mm 1000 mm 15.22.12 1500 mm 2200 mm 1200 mm 15.30.12 1500 mm 3000 mm 1200 mm
