Providing multifaceted yet cost-effective dimensional inspection capabilities, CROMA offers the ideal option for customers looking to purchase their first coordinate measuring machine or increase capacity for an existing quality assurance operation.
Supporting manufacturers from the beginning of the product lifecycle through to final approval, CROMA machines give all-round performance for workpieces of many shapes and sizes, and deliver a quick return on investment.

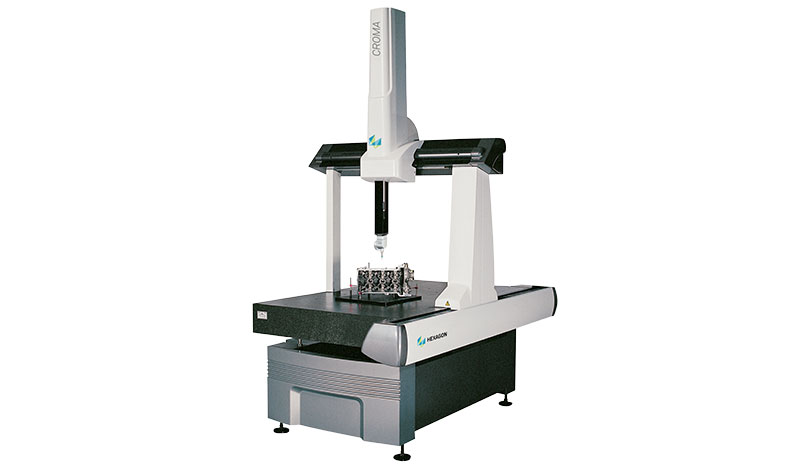

The CROMA range of affordable bridge-type coordinate measuring machines (CMMs) is designed to enable customers to improve quality control across the production process and provide great value for money. With advanced frame design, well-engineered structure, specially-designed controller technology and the latest software packages, the range balances accuracy, throughput and reliability with price/performance ratio.
Available in sizes to suit every kind of business, CROMA machines combine innovative design with proven construction and patented technology. User-friendly operation driven by the flagship dimensional metrology software, PC-DMIS, gives an effective measurement solution for the needs of new entrants to the CMM market.
- Features & benefitsAll aluminium structure
Robust frame with hard anodised aerometal beam and Z-axis offers temperature consistency as well as a reduced mass of moving parts and force of inertia to ensure high accuracy during high-speed movement.
Patented triangular beam
The triangular beam design offers a lower centre of gravity, better stiffness and more reliable motion compared to rectangular and cross beams.
Integral dovetail guide way
Integral dovetail guide way on Y-axis reduces the machine weight and helps prevent motional swings during the inspection process to ensure measuring accuracy and stability.
Self-cleaning air bearings
All three axes run on high-precision self-cleaning air bearings, providing smooth movement that reduces wear on the guide ways to maximise equipment durability and minimise repair costs.
High-precision optical scales
European-import, high-precision optical scales installed with one end fixed and the other freely extensible ensures linear expansion and contraction with temperature changes to mitigate the impact of thermal deformation.
DC servo motors
All three axes are driven by DC servo motors, providing stable movement and exact positioning to support accurate probe location and overall measurement.
Specially-designed control system
The IDC-I control system, designed by Hexagon Metrology specifically for the CROMA range, improves the dynamic performance and measuring capabilities of the machine.
| Machine Type | CROMA 564 | CROMA 686 | CROMA 8106 | CROMA 8126 | |
| Strokes (mm) | X | 500 | 600 | 800 | 800 |
| Y | 600 | 800 | 1000 | 1200 | |
| Z | 400 | 600 | 600 | 600 | |
| Measuring range (mm) | Dx | 634 | 734 | 934 | 934 |
| Dz | 144 | 144 | 144 | 144 | |
| Dz1 | 594 | 794 | 794 | 794 | |
| Working plate (mm) | Ph | 783 | 783 | 805 | 805 |
| Py | 1155 | 1355 | 1555 | 1755 | |
| Support (mm) | Sy | 824 | 978 | 1178 | 1378 |
| Sy1 | 356 | 379 | 379 | 379 | |
| Overall size (mm) | Lx | 1050 | 1150 | 1350 | 1350 |
| Ly | 1535 | 1735 | 1935 | 2135 | |
| Lz | 2247 | 2647 | 2729 | 2729 | |
| Max. part weight | 300 | 300 | 300 | 300 | |
| Machine wieght (kg) | 590 | 730 | 1074 | 1196 | |
| MPEe (μm) | 2.8 + L / 300 | 2.8 + L / 300 | 3.0 + L / 300 | 3.0 + L / 300 | |
| Probe/Sensor | Manual or automatic | ||||
| Scales resolution μm | 0.078 | 0.078 | 0.078 | 0.078 | |
| Max. 3D speed (mm/s) | 520 | 520 | 520 | 520 | |
| Max. 3D acceleration (mm/s2) | 1730 | 1730 | 1730 | 1730 | |
| Air pressure | 120 Nl / min, 0.45 Mpa | 120 Nl / min, 0.45 Mpa | 120 Nl / min, 0.45 Mpa | 120 Nl / min, 0.45 Mpa | |
| Operating temperature | 20±2°C | 20±2°C | 20±2°C | 20±2°C | |
| Temperature gradients: | |||||
| Air temperature variation | 1°C / h – 2°C / 24h | 1°C / h – 2°C / 24h | 1°C / h – 2°C / 24h | 1°C / h – 2°C / 24h | |
| Air temperature gradient | 1°C / m | 1°C / m | 1°C / m | 1°C / m | |
| HumidityOMA | 45% – 75% | 45% – 75% | 45% – 75% | 45% – 75% | |
